Triplex Series Pumps in India

Categories: ,

Description

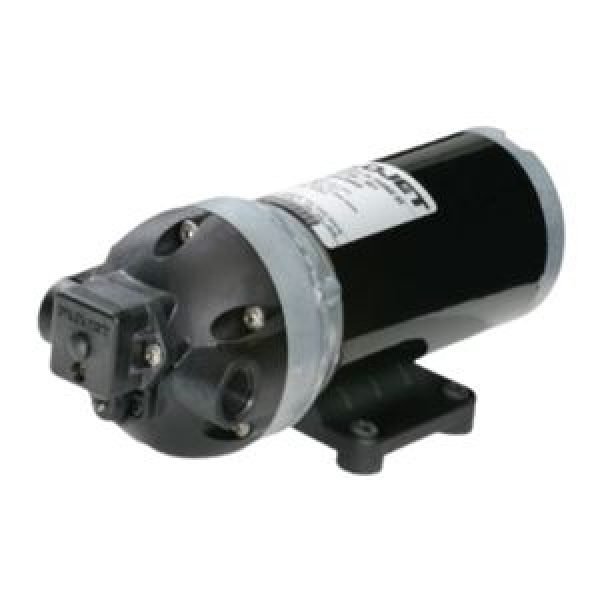

Flojet Triples SeriesFlojet Triplex High-Pressure Pumps are engineered to be the most advanced and reliable product available. The redesigned and improved pumps offer unequaled performance and life.

Flojet’s unique three-chamber design allows these pumps to operate at exceptional flow rates and pressures. With operating pressures up to 150 PSI (10.3 Bar) and self-priming capabilities. Flojet Triplex pumps are designed to be the most versatile pumps on the market today. They are the ideal solution for applications including spraying, misting, filtration, cooling, dispensing, and pressure boosting.

The Flojet Triplex Series High-Pressure Pumps are available now in 12V DC, 24V DC, 115V AC and 230V AC models, and being made from Santoprene®/EPDM and Santoprene®/Viton® makes them capable of handling a broad range of chemicals.

Features and Benefits

  • Flow rates up to 1.4 GPM (5.3 LPM) and operating pressure of up to 150 PSI (10.3 Bar)
  • Constructed from a selection of materials suitable for handling a broad range of chemicals
  • Innovative bypass design
  • Self-priming up to 8 ft (2.4m)
  • Sealed motor
  • Can run dry for extended periods of time without damage
  • Coinjected molded diaphragm technology
  • Consistent pressure over time

Applications

General Industrial

  • Chemical washdown
  • Evaporative Cooling Systems

Agricultural

  • Misting
  • Spot Sprayers
  • Boom Sprayers (to reach treetops)

Floor Care

  • Carpet Extractors
  • Carpet Cleaning

Automotive

  • Boost Cooling

Specifications

Motor Design Perm. Magnet TENV (non-ventilated)
Voltage 12 VDC, 24VDC, 115VAC, 230VAC
Amp Draw 1.2 Amps Max for 115VAC
Pump Head Materia Glass Filled Nylon
Elastomers Diaphragm Santoprene®
Check Valve EPDM or Viton®
Maximum Flow Rate 1.4GPM (5.3LPM)
Maximum Pressure 150 PSI (10.3 Bar)
Duty Cycle Intermittent
Weight 7.6 lbs. (3.5 Kg)
Certifications UL, CE, NSF components
Port Size Inlet/outlet 3/8″ NPTF



Std. Models CE Models Open Flow Switch Pressure Check Valve Diaphragm Voltage Duty Cycle Port Size
3811133 R3811133 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) Viton® Santoprene® 12 VDC Intermittent 3/8″ NPTF
3811143 R3811143 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) EPDM Santoprene® 12 VDC Intermittent 3/8″ NPTF
3811333 R3811333 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) Viton® Santoprene® 24 VDC Intermittent 3/8″ NPTF
3811343 R3811343 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) EPDM Santoprene® 24 VDC Intermittent 3/8″ NPTF
3811033 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) Viton® Santoprene® 115VAC Intermittent 3/8″ NPTF
3811043 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) EPDM Santoprene® 115VAC Intermittent 3/8″ NPTF
3811233 R3811233 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) Viton® Santoprene® 230VAC Intermittent 3/8″ NPTF
3811243 R3811243 1.4 GPM (5.3 LPM) 150 PSI (10.3 bar) EPDM Santoprene® 230VAC Intermittent 3/8″ NPTF
